Fire Resistant Oil Analysis Equipment Self - Ignition Point Testing Equipment

Ask Lasest Price
Brand Name :	YUYANG
Model Number :	SIP
Certification :	ISO
Price :	USD5500
Supply Ability :	100 Sets per month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

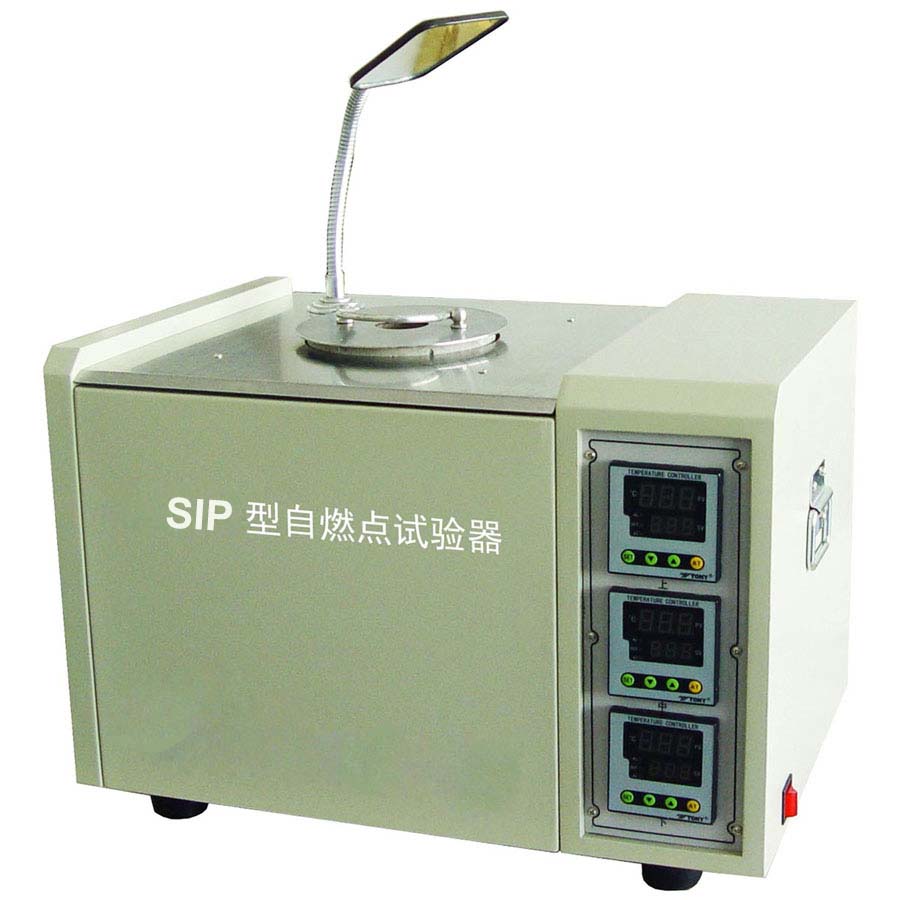

Fire Resistant Oil Analysis Equipment Self - Ignition Point Testing Equipment

Fire Resistant Oils Self-ignition Point and Burning Point Testing Equipment

Summary

This self ignition point apparatus is designed and made as per industrial standard DL/T 706-1999 Test method for auto-ignition temperature of fire-resistant fluid used for power plant of People’s Republic of China. It is used to determine the self-ignition temperature of fire resistant oils used in the speed regulating system of power set which is over 30MW.

I. Main technical features

1. This self ignition point analyzer adopts advanced AI manmade and intelligent regulator to control temperature to make the temperature inside the vessel reach a heat balance. The flasks of the top, middle and bottom parts temperature error control within 1 ℃

2. The instrument uses a retroreflector to observe the burning point of fire-resistant oil, convenient and reliable.

3. The burning point testing equipment is newly designed and easy to use. The performance is good and stable. It is suitable to determine the self-ignition point of fire resistant oil and other similar kinds of special oils.

The greatest feature of this instrument are: use intelligent temperature regulation and control technology, the test flasks of the top, middle and bottom parts temperature error controlled within 1 ℃.

II. Main technical specifications

1. Temperature control range: Room temperature～ 800℃

2. Temperature control precision: The bias of the top, middle and bottom parts of flask is ≤1℃.

3. Conical flask: 200 ml

4. Ambient temperature: Room temperature～50℃

5. Relative humidity: ＜80%

6. Power supply: AC(220±10%)V,50Hz

7. Maximum power consumption: 2000W

8. Dimension: 540㎜×310㎜×270㎜(retroreflector is not included)

III.Accessories

No	Item	Unit	Qty	Remarks
1	Precision inner diameter adsorption column	Piece	2
2	Imported silica gel (500g)	Bottle	1
3	Imported fluorescent indicator (4g)	Bottle	1
4	6mm intake pipe(intake pipewith cylinder connection)	Set	1
5	Glass grinding plug(with trachea)	Set	2
6	Glass flow export	Piece	2
7	Grinding mouth clip (28, large)	Piece	2
8	Grinding mouth clip (12, small)	Piece	2
9	Indicate that the dose spoon	Piece	1
10	Special needle used for cleaning	Piece	1	When used for washing
11	500ml waste liquid bottle(with rubber stopper and PU tube)	Set	1	When used for washing
12	Plastic measuring cup (250ml)	Piece	1	When used for washing
13	Magnetic pointer	Piece	8	Placed on both sides of the scale
14	Magnetic fixed base	Piece	2	When the vibration place the magnetic fixed basein the bottom of the absorption column
15	Fuse (10A, Ф5 × 20)	Piece	2	Spare parts
16	Purple light tube, 40W, 365nm wavelength	Piece	1	Spare parts, placed inside the instrument
